Light 103

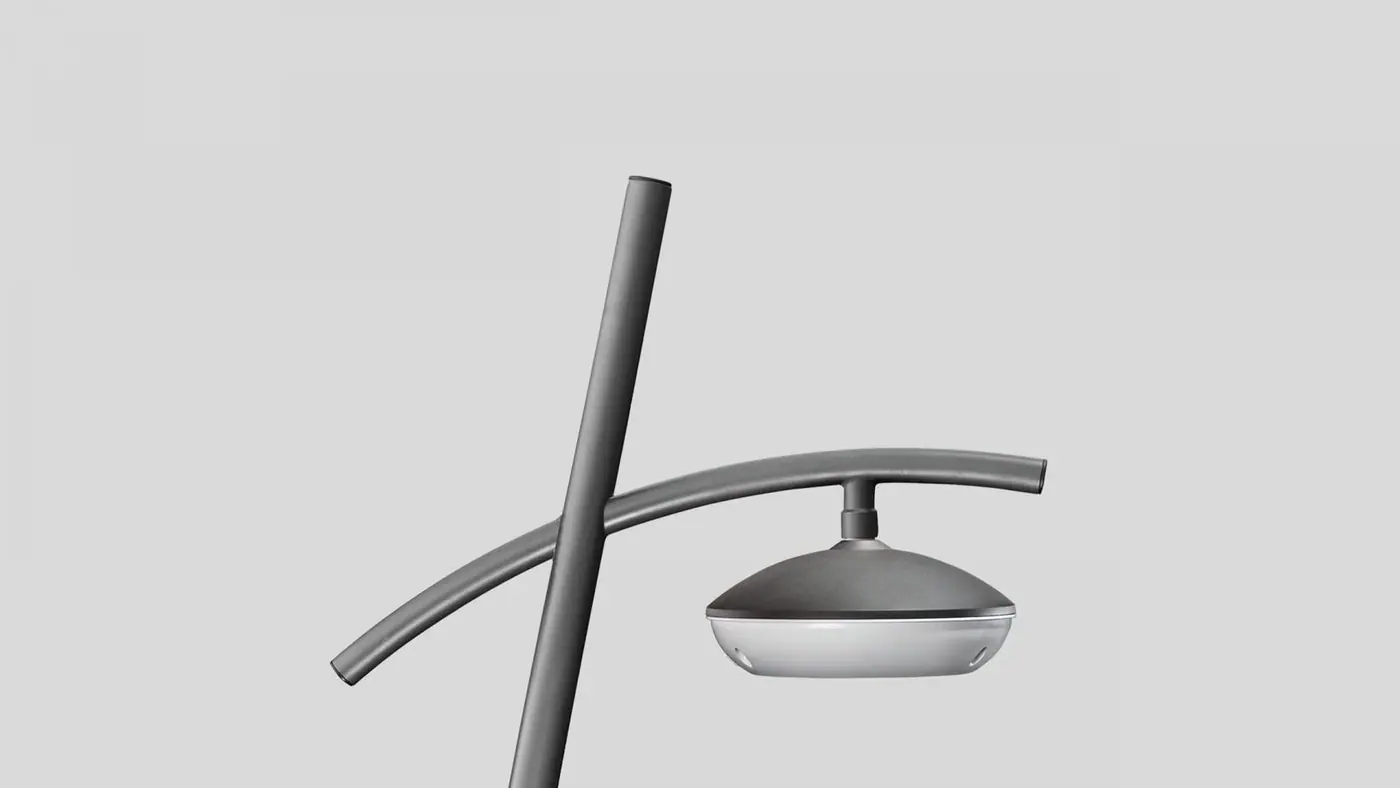

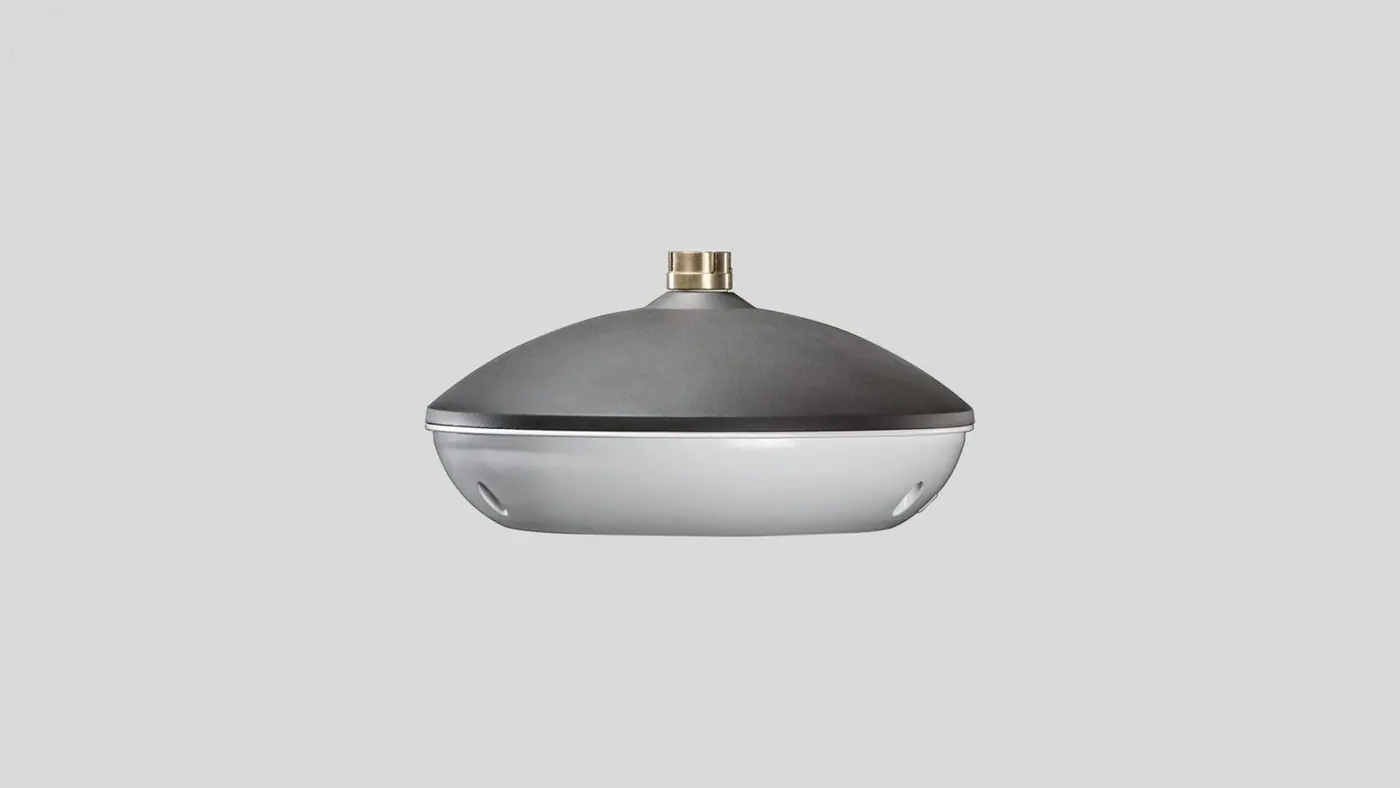

Light 103 is a die-cast aluminium luminaire with an extra-clear flat glass screen and IP66 and IK09 protection ratings. Thanks to its G 3/4 gas thread fitting and the range of available optics, it covers applications from roadways to pedestrian areas. The LEDs sit on a ceramic base and the optical system is built from stacked PMMA lenses. A two-tone finish, Neri Grey above and RAL 9016 white below, gives the luminaire a calm appearance.
- Die-cast aluminium housing
- IP66 and IK09 protection ratings
- G 3/4 gas thread fitting
- Optics with stacked PMMA lenses

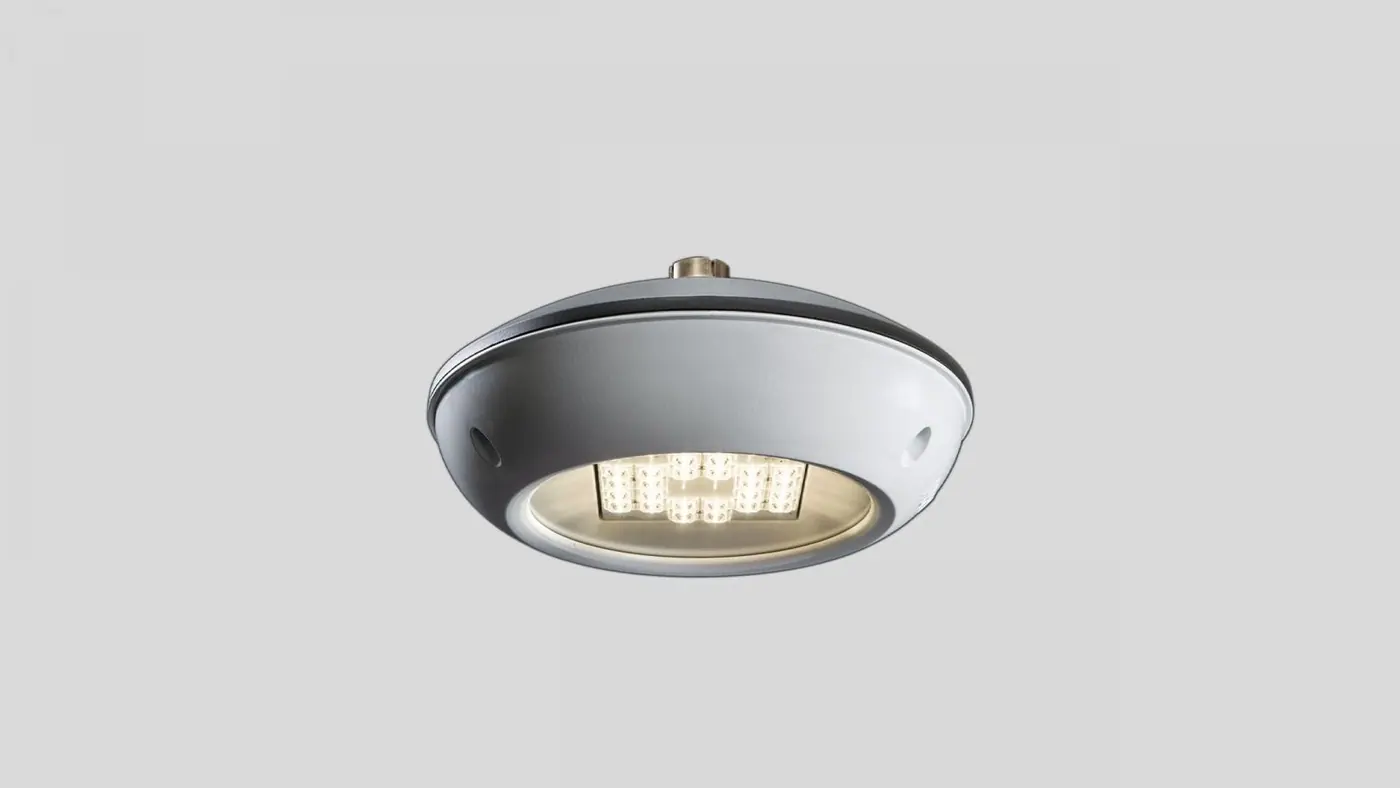

- Nichia LEDs on ceramic base
Considered thermal design

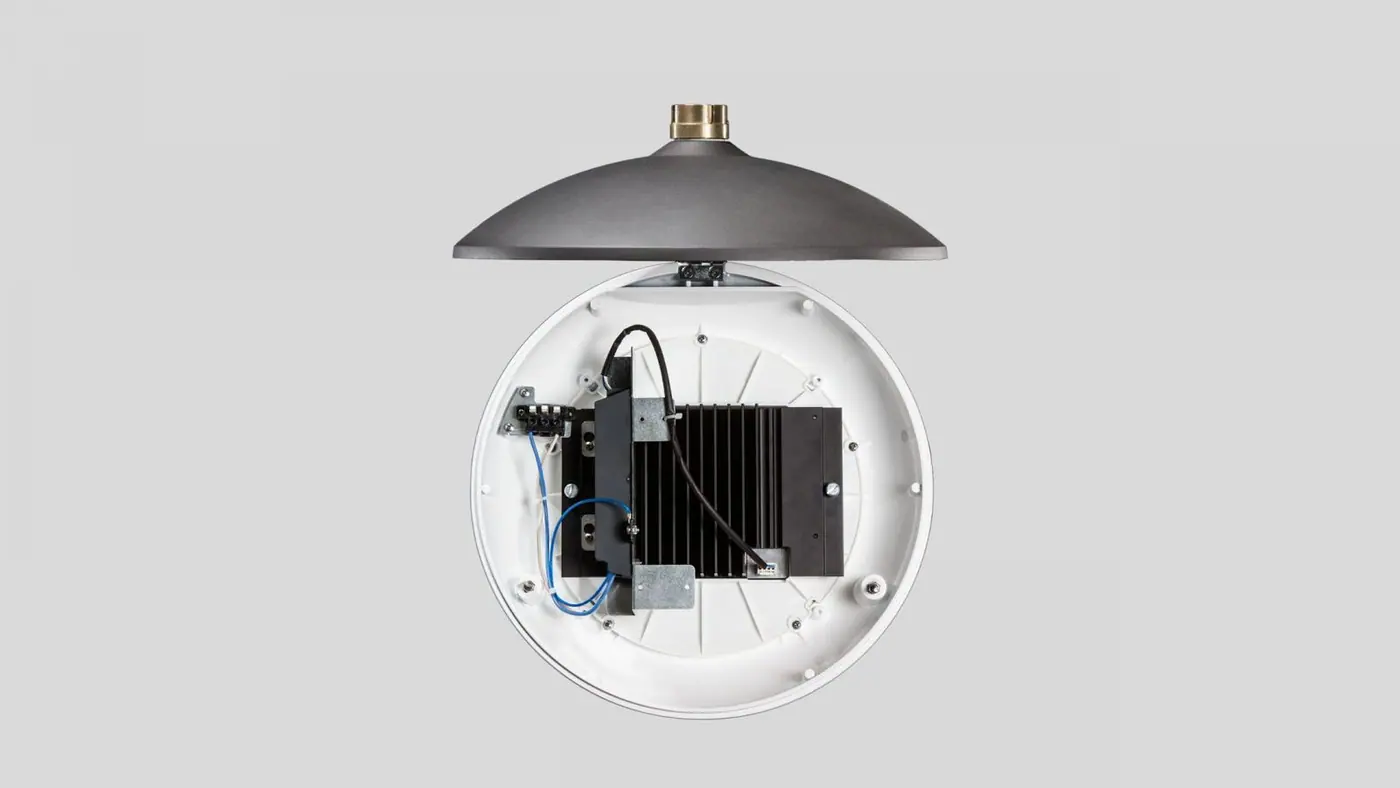

An internal finned aluminium heat sink transfers heat to the upper cover and keeps the air inside the housing moving. This keeps the LED junction temperature within the limits that safeguard the expected service life, even at ambient temperatures up to 50 degrees Celsius.
