ViperRAIL Illuminated Handrail System

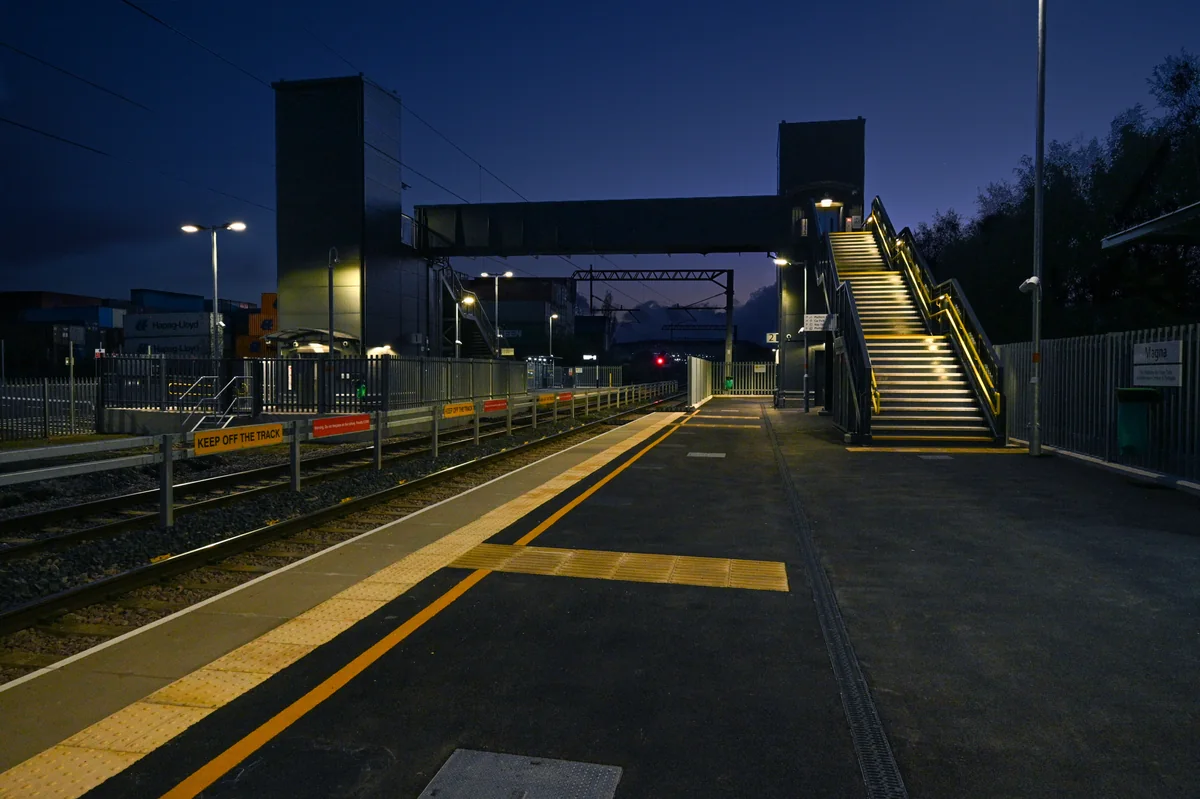

ViperRAIL is a project-specific LED handrail system with the lighting integrated into the rail itself. It lights stairs, walkways and bridges evenly without separate luminaires. The 48 mm rail is made from 316 stainless steel and comes brushed, powder coated or with a warm-touch coating. The LED units are IP65 with IK11 optics, Class III SELV, in module lengths from 300 to 1200 mm. Symmetric and asymmetric distributions, dimming and emergency operation via an inverter or UPS are available.
BrandASD Lighting
CategoryRail & infrastructure
IP ratingIP65 (LED units)
IK ratingIK11
Electrical classClass III (SELV)
Colour temperature4000K (standard)
Mountingfloor/ground, wall
EmergencyVia inverter or UPS
Body316 stainless steel, anodised aluminium heat sink
Diffuserpolycarbonate
Rail diameter48 mm
Module lengths300, 600, 900, 1200 mm
OriginUnited Kingdom
Supply & adviceStrapitec
- 316 stainless steel rail, Ø 48 mm
- LED units IP65 · IK11
- Class III SELV
- Modules from 300 to 1200 mm
- Over 100,000 hours L85 B10
