SkyBay Zalux

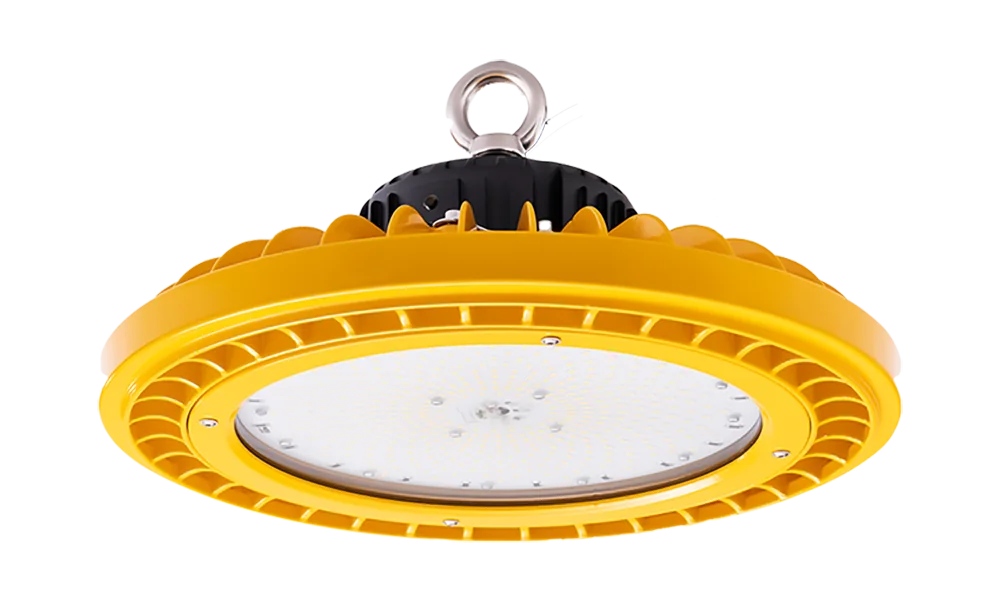

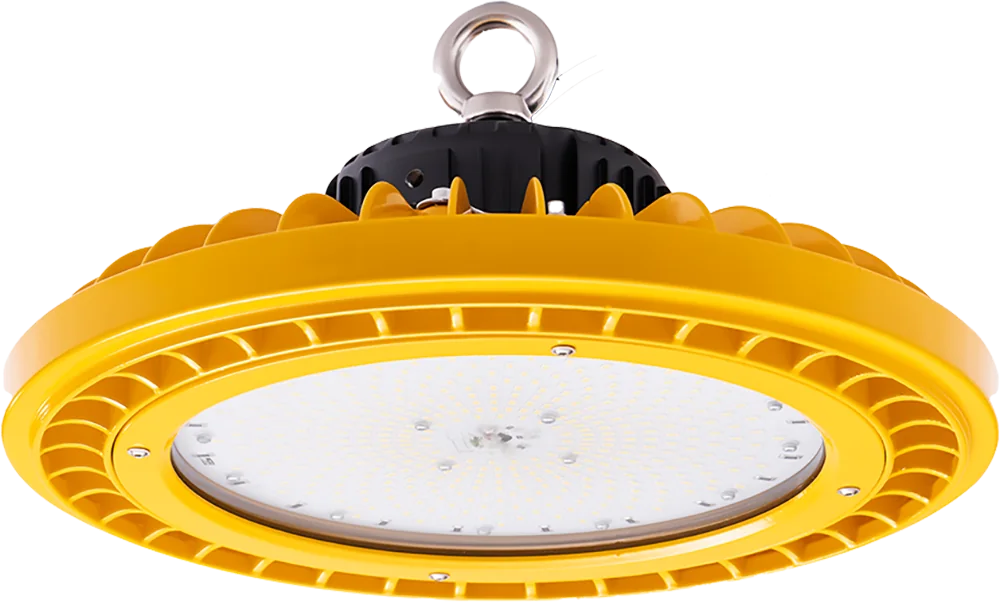

SkyBay Zalux is an explosion protected high bay for ATEX zones in oil and gas facilities, petrochemicals and other industry. Versions are available for Zone 1 and Zone 2, with outputs from 6,000 to 40,500 lumens at 40 to 270 W. The copper-free aluminium body with hardened glass achieves IP66 and IK10 and is suitable for outdoor use. The Zone 2 versions operate from -32 °C to 75 °C. Lifetime is L80 at 90,000 hours. Standard colour is yellow RAL 1003, with grey RAL 7035 as an option.
BrandASD Lighting
CategoryIndustrial
IP ratingIP66
IK ratingIK10
Electrical classClass I
Power40-270 W
Luminous flux6,000-40,500 lm
Efficacyup to 152 lm/W
Colour temperature4000K
Colour renderingCRI 80
LifetimeL80 · 90,000 hours
Mountingsuspended, ceiling/surface, wall
OriginUnited Kingdom
Supply & adviceStrapitec
- ATEX and IECEx, zone 1 and 2
- 6,000 to 40,500 lumens
- IP66 · IK10
- Copper-free aluminium, hardened glass
- L80 at 90,000 hours
