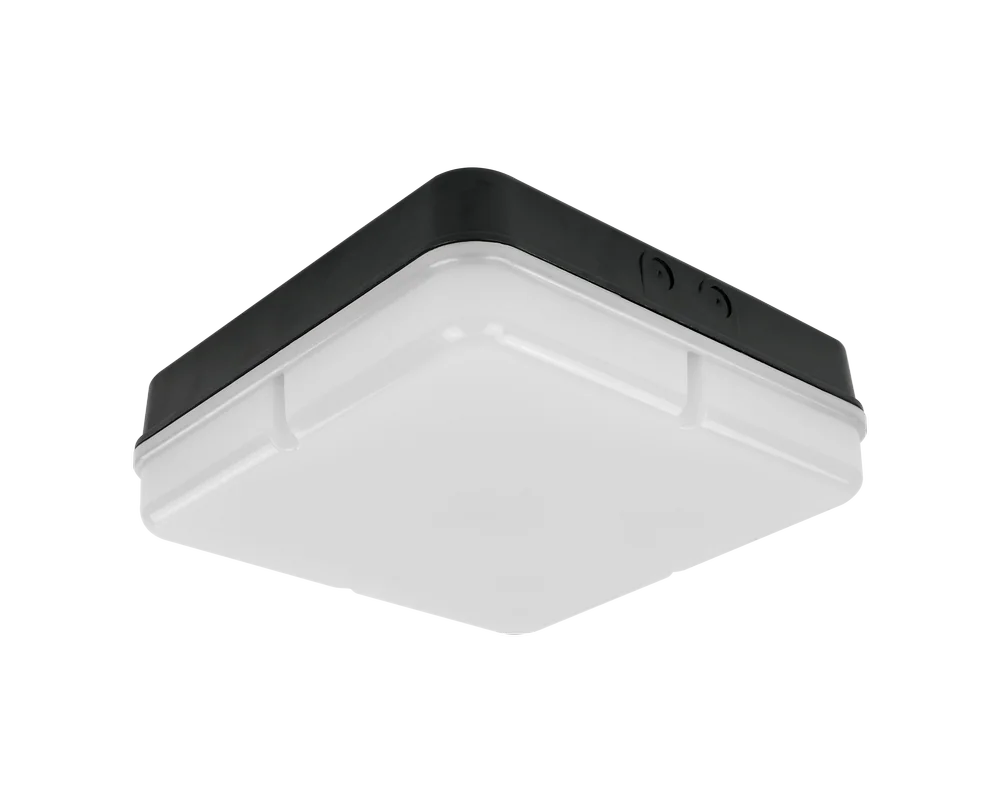

Mini Square IP65 Bulkhead

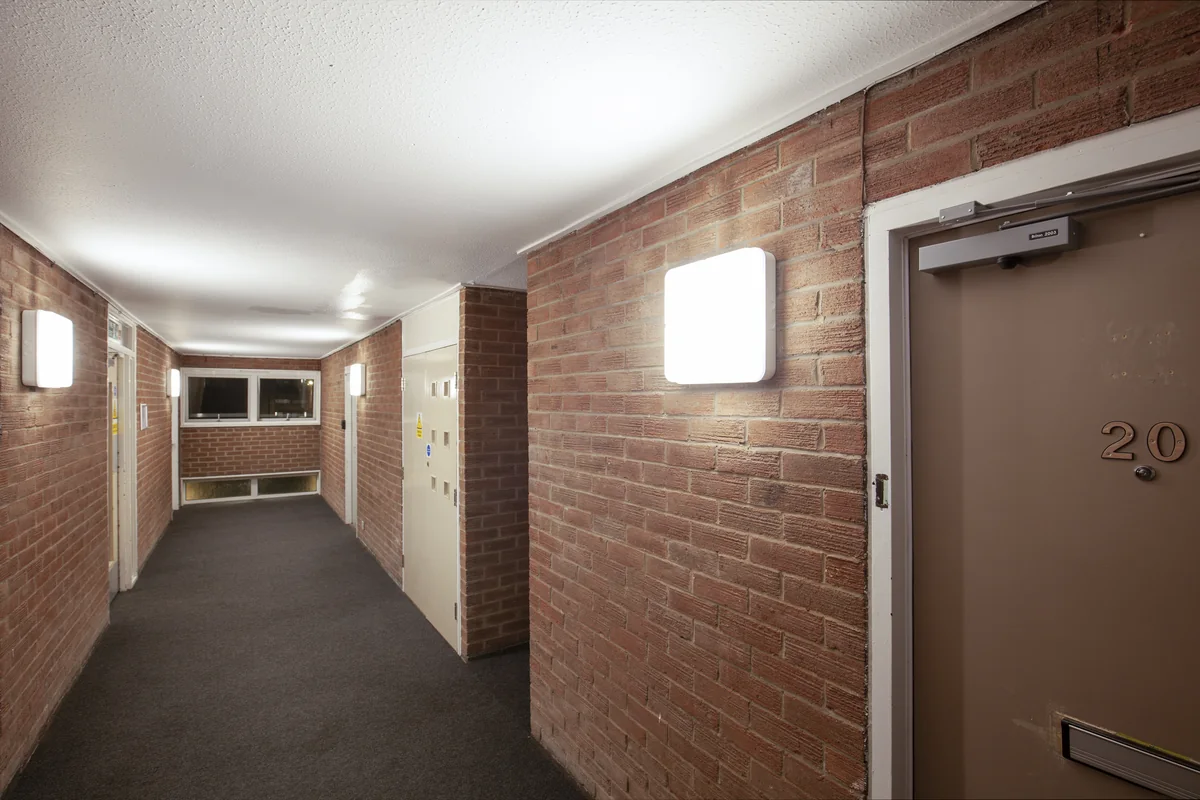

Mini Square IP65 is the smallest square utility luminaire in the Square IP65 range, measuring 190 x 190 mm. It is intended for storage areas, plant rooms, porches, walkways and other small spaces, indoors and outdoors. Body and opal diffuser are vandal resistant, self-extinguishing polycarbonate rated IP65 and IK11. The diffuser is secured with anti-tamper screws. At around 8 W it delivers roughly 520 to 550 lumens. A photocell, microwave sensor or central battery connection is possible.
BrandASD Lighting
CategoryFacade & floodlights
IP ratingIP65
IK ratingIK11
Electrical classClass I
Power7.3-8.5 W
Luminous flux516-549 lm
Efficacyup to 75 lm/W
Colour temperature3000K, 4000K
Colour renderingCRI 83
Guarantee5 years (luminaire)
Mountingceiling/surface, wall
OriginUnited Kingdom
Supply & adviceStrapitec
- Compact, 190 x 190 mm
- IP65 · IK11 · Class I
- Hinged gear tray
- Black, white or titanium
- 5-year luminaire guarantee
