Mini Horizon

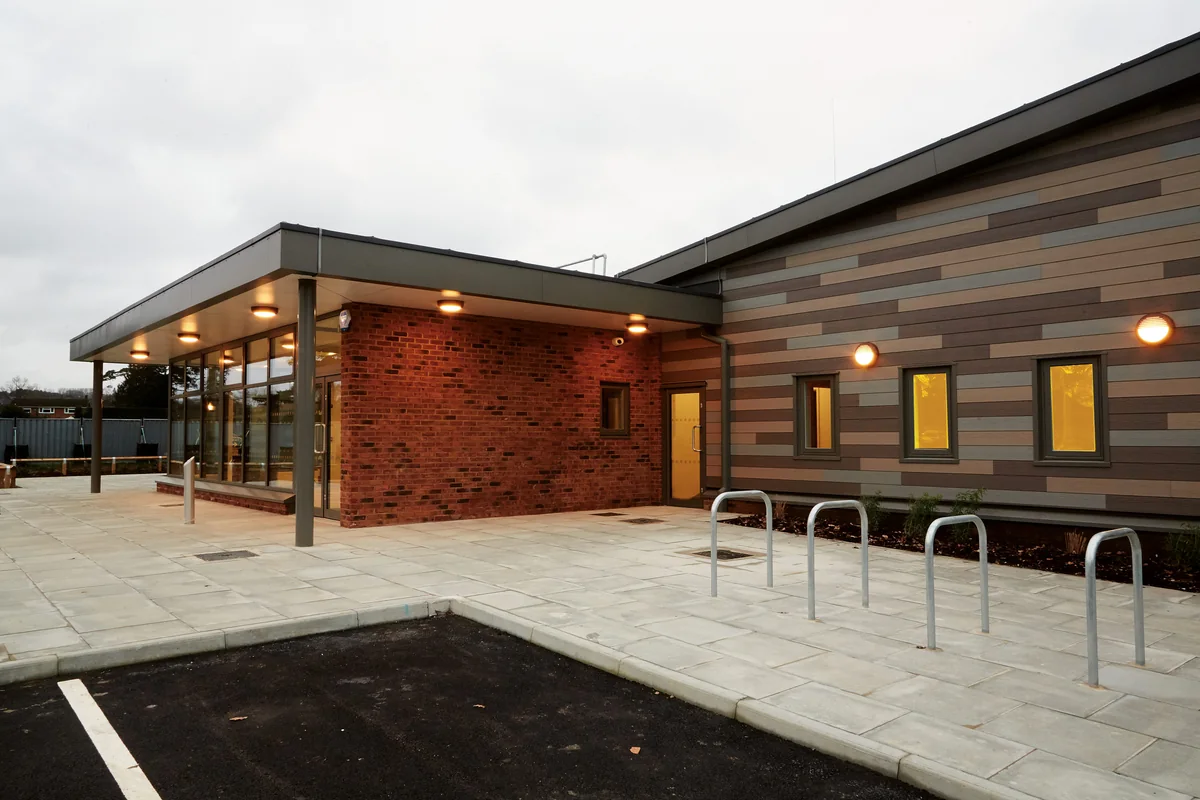

Mini Horizon is a compact 283 mm round luminaire for wall or ceiling, suitable for indoor and outdoor use. Typical locations are porches, deck access walkways, storage areas and entrances in residential buildings. Body and diffuser are vandal resistant, self-extinguishing polycarbonate rated IP65 and IK11. Choose a plain, louvre or eyelid ring to limit upward glare. Power is 8.5 W. PIR, HI-LO PIR and a photocell are available as options.
BrandASD Lighting
CategoryFacade & floodlights
IP ratingIP65
IK ratingIK11
Electrical classClass I
Power8.5 W
Luminous flux215-485 lm
Efficacyup to 57 lm/W
Colour temperature3000K, 4000K
Colour renderingCRI 83-84
Guarantee5 years (luminaire)
Mountingceiling/surface, wall
OriginUnited Kingdom
Supply & adviceStrapitec
- 283 mm diameter
- IP65 · IK11 · Class I

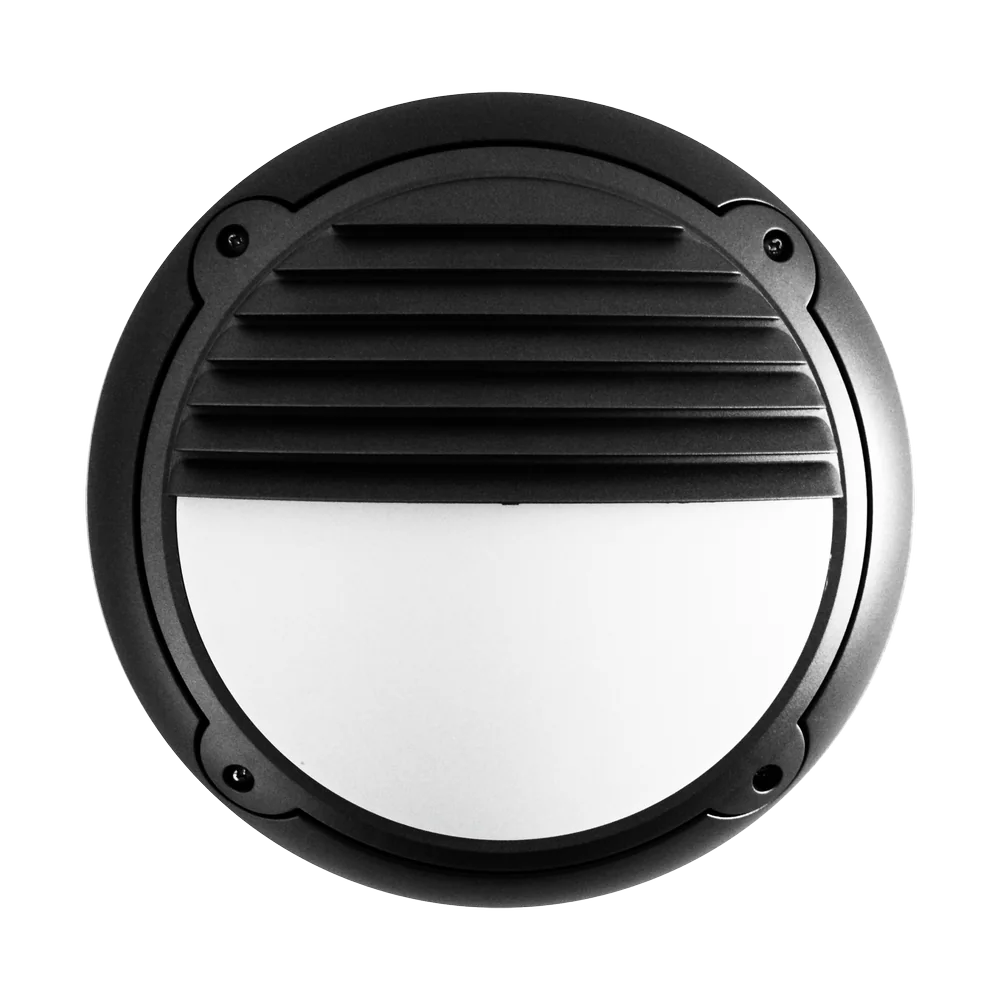

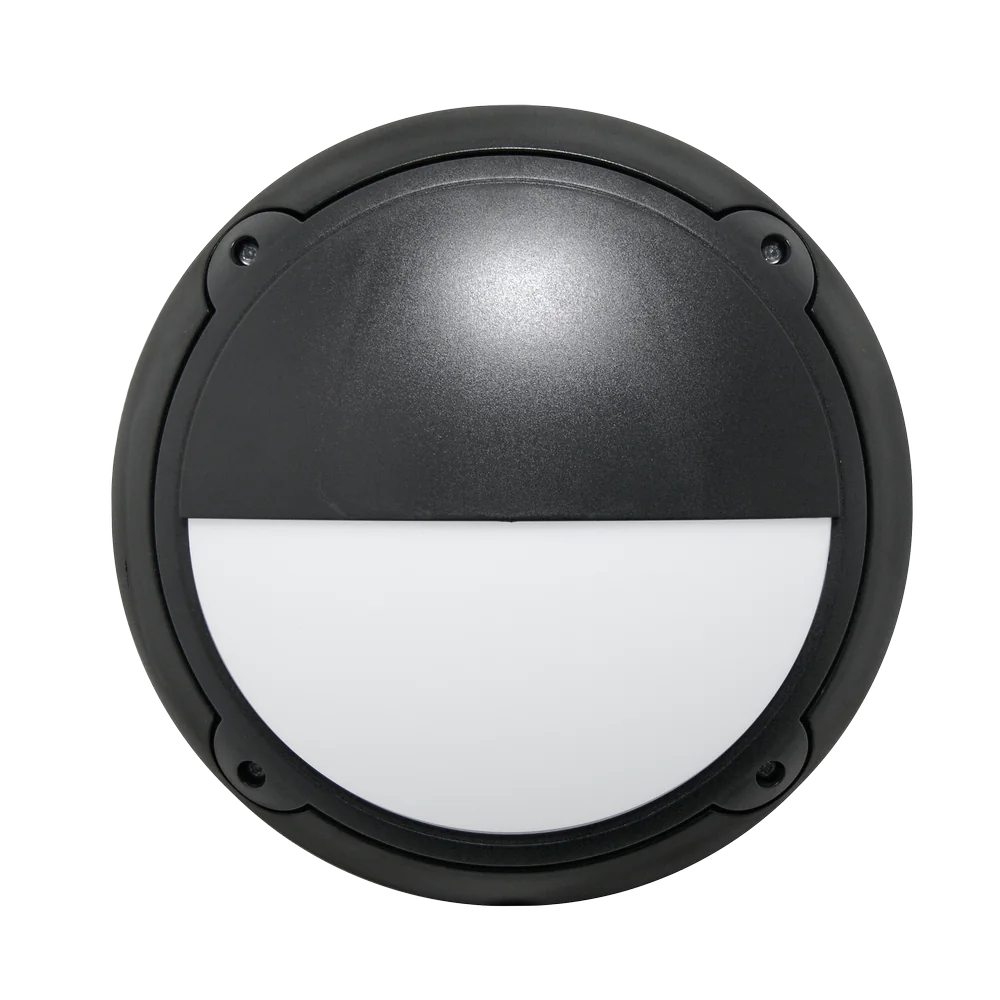

- Plain, louvre or eyelid ring
- Black, white or titanium
- Optional PIR or photocell
