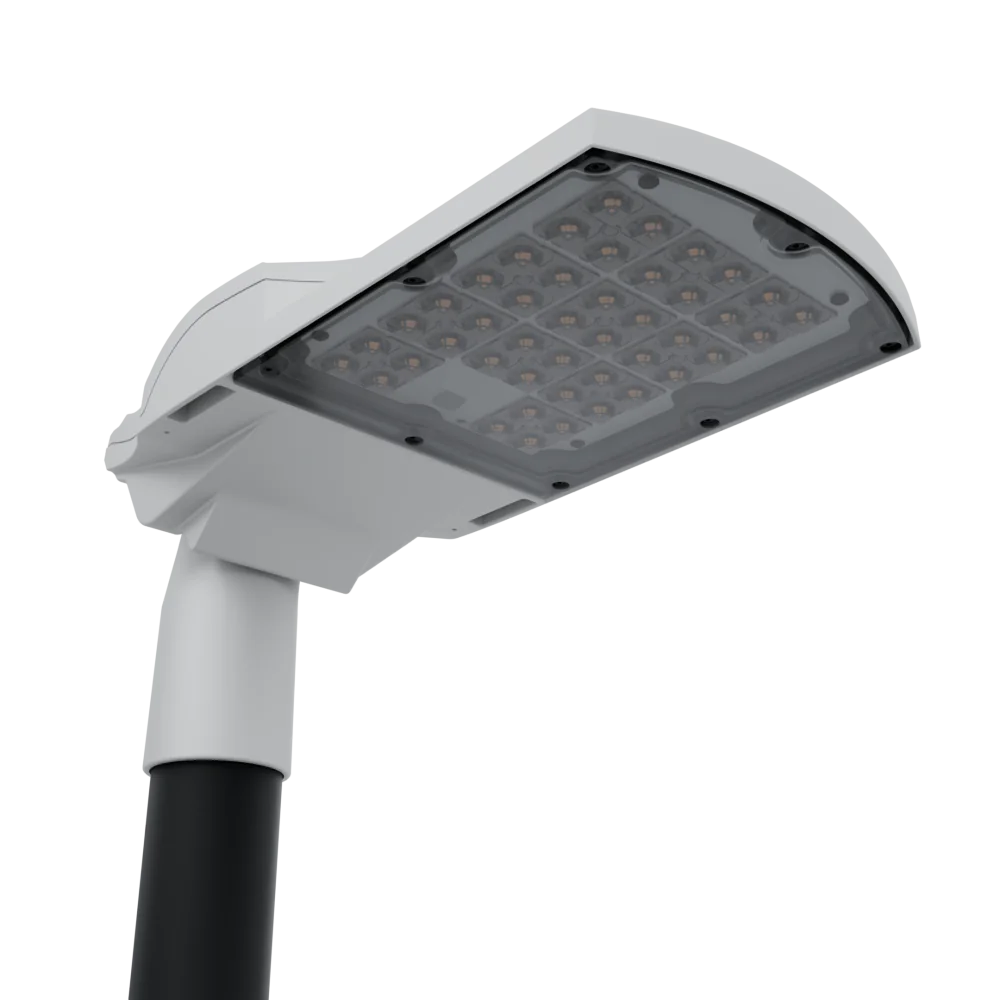

Mini Highway Diamond Elite
Mini Highway Diamond Elite is a mid-sized body within the Highway Diamond Elite family, covering roughly 870 to 15,500 lumens at 10 to 135 W. That makes it suitable for residential areas, distributor roads, car parks and business parks. The die cast aluminium body measures 476 x 233 mm and is rated IP66 and IK11. The driver tray can be replaced without tools, and auto-disconnect and surge protection are included. Class II, emergency and additional surge protection are available on request.
BrandASD Lighting
CategoryStreet lighting
IP ratingIP66
IK ratingIK11
Electrical classClass I, Class II (on request)
Power9.6-135 W
Luminous flux872-15,467 lm
Efficacyup to 160 lm/W
Colour temperature2200K, 2700K, 3000K, 4000K
Colour renderingCRI 72
LifetimeL90 · 100,000 hours
Guarantee8 years (luminaire)
OriginUnited Kingdom
Supply & adviceStrapitec
- Approx. 870 to 15,500 lumens
- IP66 · IK11 · ENEC
- Tool-free driver tray
- Class II on request
- 8-year luminaire guarantee
