Melody PLUS 600 x 600

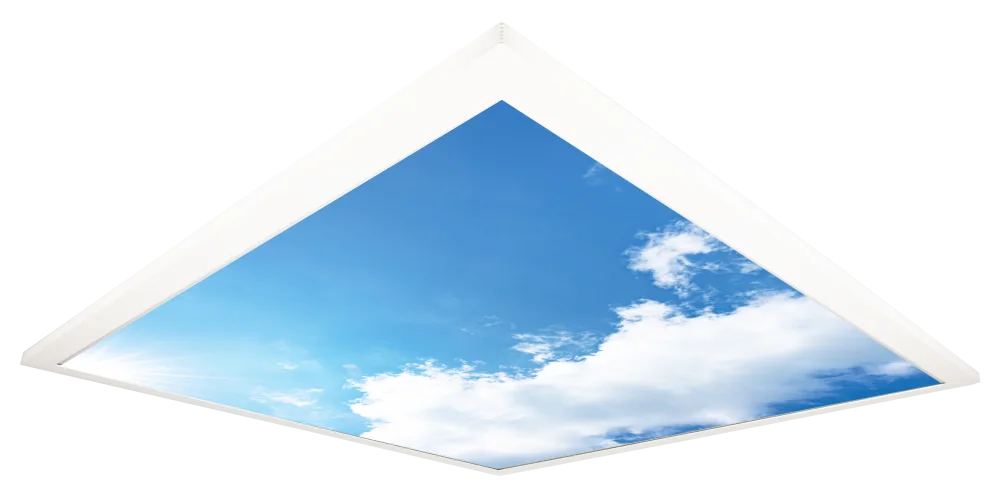

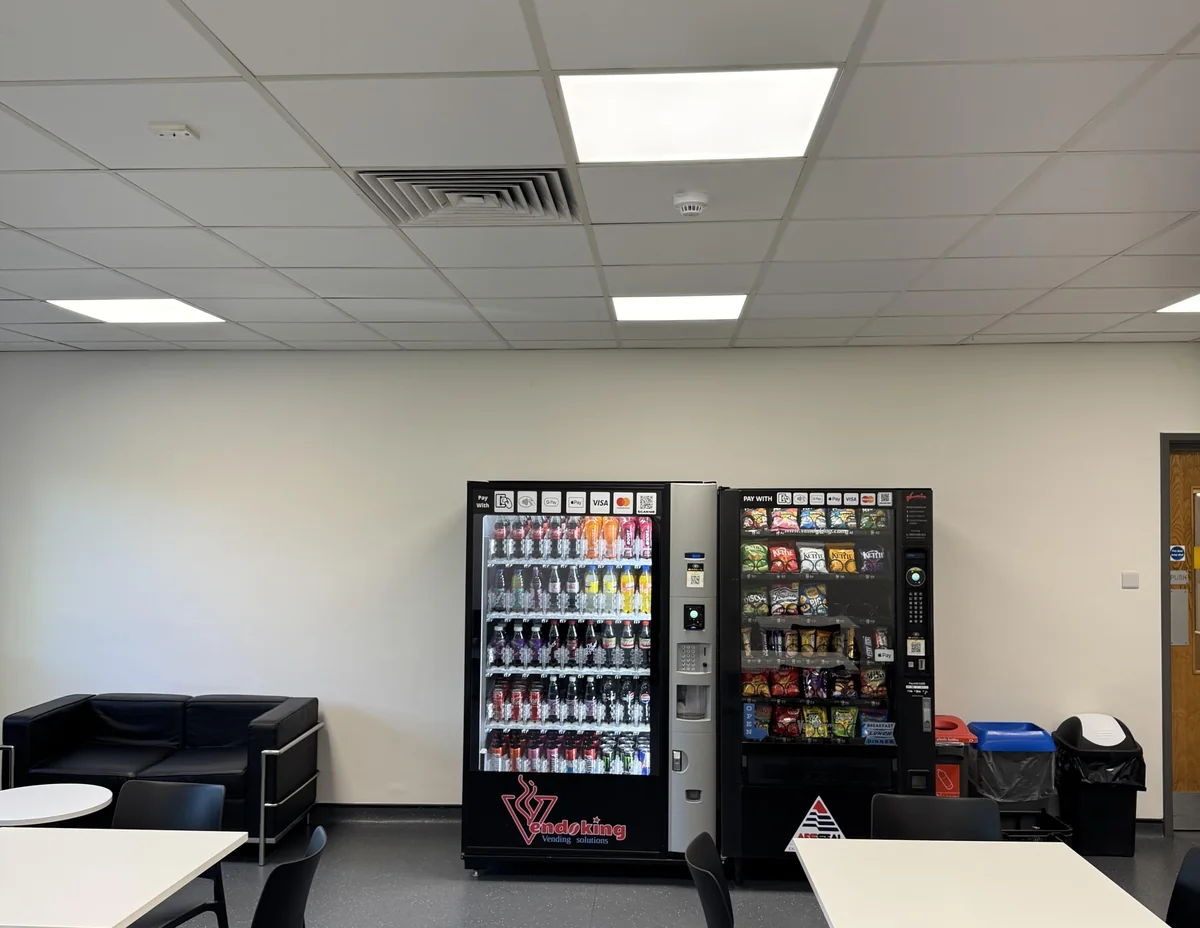

Melody PLUS 600 x 600 is an ultra-thin, edge-lit LED panel only 8.5 mm deep for suspended ceilings with a 600 mm grid. It comes with a pre-installed connection cable and plug, which speeds up installation. With a surface frame or suspension kit it can also be ceiling mounted or suspended. The white aluminium body is rated IP40 at the front. At 22 to 36 W it delivers about 2,500 to 4,200 lumens. Melody SkyTile is a variant with ultra-low flicker. DALI, Casambi and emergency are optional.
BrandASD Lighting
CategoryInterior lighting
IP ratingIP20 / IP40
IK ratingIK02
Electrical classClass I
Power22-36 W
Luminous flux2,487-4,161 lm
Efficacyup to 122 lm/W
Colour temperature3000K, 4000K
Colour renderingCRI 82
LifetimeL70B50 · 102,000 hours
Guarantee5 years (luminaire)
OriginUnited Kingdom
Supply & adviceStrapitec
- Only 8.5 mm deep
- Pre-installed cable and plug
- IP40 front
- Surface frame accessory
- SkyTile with ultra-low flicker
